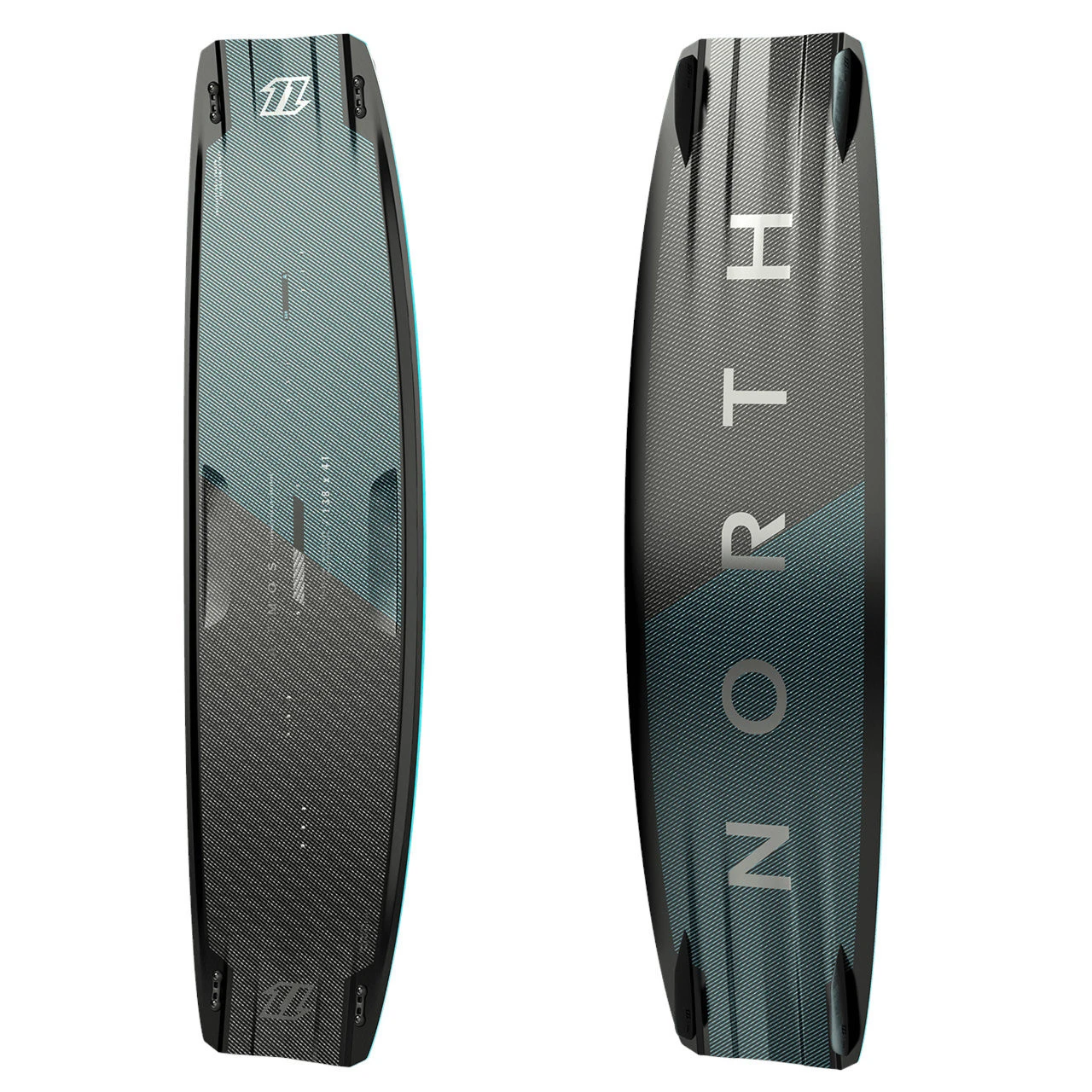

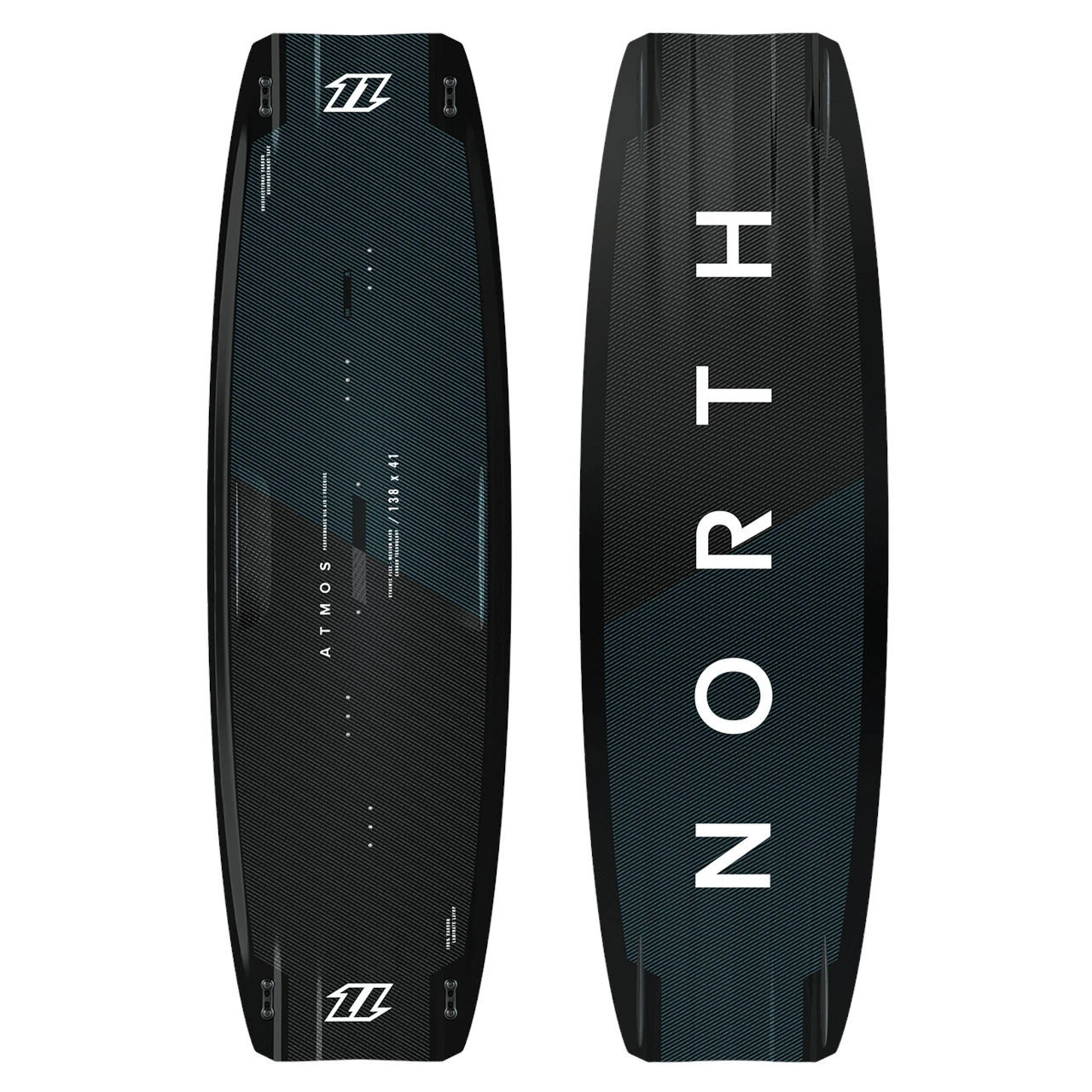

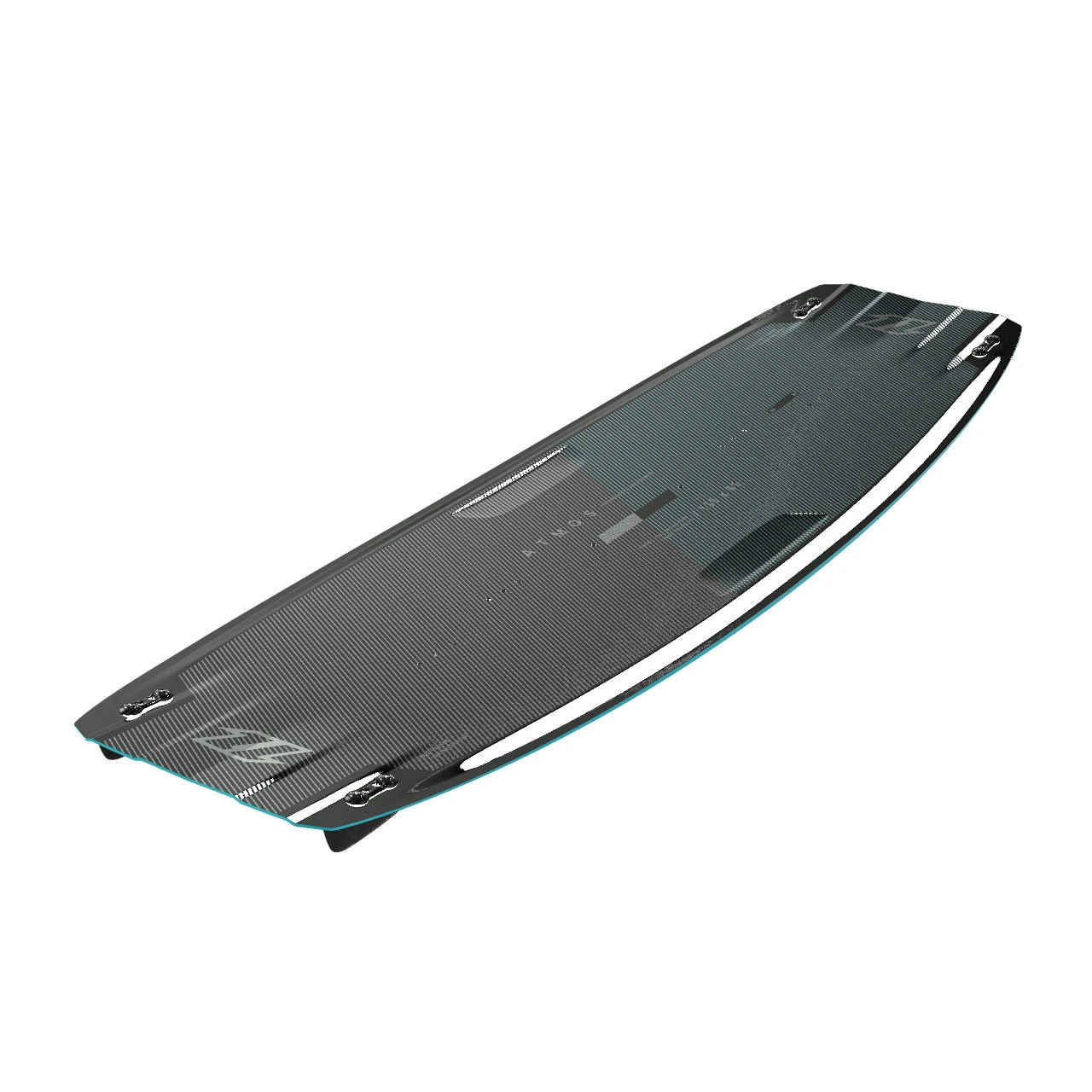

2022 North Atmos Carbon Twintip Kiteboard

2022 North Atmos Carbon Twintip Kiteboard

Big Air / Freeride

Includes: Board, 40mm Fins, M6x16 Standardized Screws

Sizes: 136×40 / 138×41 / 141×42 / 144x43cm

Gravity, we defy you

A dynamic ride with powerful upwind, precise edge control, rapid response and explosive pop. Reach earth’s atmosphere with the Atmos Carbon, our premier high-performance Freeride board for mega-boosting, looping and controlled landings. The Atmos Carbon has been master-crafted by our skilled engineers, who have carefully positioned the full carbon laminate layup to provide balanced torsional stiffness and flex. The harmony created between outline, rocker and flex makes this the ultimate all-terrain board. Designed to ride overpowered with ease and control, yet still enabling early planing and low-end performance. Winner of the Highest Trick Score by Nick Jacobsen, and the Biggest Air by Marc Jacobs at the 2020 Red Bull King of the Air.

Specifications & Performance

Length (cm)	Center Width	Shape	Rocker	Outline Curve	Flex	Fins (mm)	Stance Width	Rider (kg)
136	40	Single Concave To Quad Channel Tips	40 – 45	Progressive / Pulled In Tips	Medium Hard	40	Regular	55 – 80
138	41							65 – 90
141	42							75 – 100
144	43							85 – 120

Highlights

Premium carbon performance

The refined carbon laminate layup delivers a dynamic and responsive high-performance ride. Thoughtfully selected and arranged combination of woven roving and biaxial carbon fiber fabrics and unidirectional reinforcements provides an extremely fast response when loaded.

Precise responsive edge control

Unrivalled edge control for powerful upwind tracking and Big Air boosts in even the most overpowered conditions. The harmonious equilibrium between rocker, outline and flex creates a board with quick response perfect for lining up that kicker, edging hard and boosting high.

Impact-absorbing single concave to quad channels

The contoured bottom shape absorbs impact by breaking the water surface tension, and ensures stable and predictable landings.

Technology

DYNAMIC FLEX

The flex characteristic of every TwinTip Board is determined by multiple features built into each specific design. Core thickness variations and taper, as well as detailing, longitudinally and laterally, play the most significant role in controlling the overall flex and feel. Board specific laminate layups then allow us to further fine tune the flex and board characteristics. We adjust the stiffness lengthwise and torsionally in conjunction with the rocker line, plan shape view and profile of the board, to give each board its specific performance characteristics.

DURABLE ABS RAIL

For long-lasting, impact-resistant performance.

ERGONOMIC HANDLE

Lightweight over-molded TPE handle, for ultimate grip when wet.

STAINLESS M6 STANDARDISED HARDWARE

Standardized SS316 M6x16mm hardware across all twin tip boards and accessories enables the use of the same PH3 screwdriver for assembly and makes replacement of parts super easy.

CARBON CONSTRUCTION

Refined Carbon laminate layup for higher performance. Thoughtfully selected and arranged combination of woven roving and biaxial carbon fiber fabrics and unidirectional reinforcements provides an extremely fast response when loaded, with greater torsional and longitudinal board flex. The advantage of the Carbon over Hybrid Technology is a more controlled performance in overpowered conditions.

LIGHTWEIGHT, IMPACT RESISTANT PAULOWNIA WOOD CORE

Paulownia is a highly renewable hardwood species, with one of the highest strength to weight ratios. Ultra-lightweight, with a high shear force and high impact resistance, Paulownia wood forms a non-toxic core which significantly displaces the amount of foam or resin used in manufacturing, thereby reducing carbon emissions. Each board has a customized core thickness individually fine-tuned to ensure its characteristics are consistent throughout the range, no matter your size or weight.

INTEGRATED GRAB RAIL

Integrated into deck shape to provide easy grip for board-offs.

MEDIUM-HIGH OUTLINE CURVE WITH PULLED-IN TIPS

Delivers easy carving through turns and always provides optimized grip.

40MM FINS INCLUDED

Strong, abrasion resistant composite fins with dogbone washers and M6x16mm standardized screws.

RECOMMENDED WITH FLEX BINDINGS

Soft cushioning with just the right amount of grip underfoot. Pure-comfort seamless KnitFlex inners and triple-density GripFlex footbeds are combined with customized size and stance adjustments for a locked-in feel and dependable support. Sold separately in sizes S/M or M/L.

MEDIUM ROCKER

Allows for early planing and riding overpowered with ease.

IMPACT-ABSORBING SINGLE CONCAVE TO QUAD CHANNELS

The contoured bottom shape absorbs impact by breaking the water surface tension, and ensures stable and predictable landings.
