F-One Phantom FCT Foil Set

F-One Phantom FCT Foil Set

Sizes: 1280 / 1480 / 1680

Using a refined design to achieve higher finesse, the Phantom foils glide faster and for longer. Connecting waves whether during surfing or downwinding thereby becomes much easier and more fun. Yet, connecting waves isn’t much fun if you can’t turn and this is why carving is also part of the DNA of the Phantom foils. By working on the lift distribution, arch shape and other details we achieved a high-aspect, performance foil that can carve smooth curves on the waves and swells.

• Speed and glide
• Pumping/downwind machine
• Nimble and maneuverable

The Phantom wings are recommended with the R275 Surf stab made with the RTM technology. This stabilizer offers better glide and a looser feel. It’s the ideal match for the speed and glide of the Phantom wings. The looser feel will help turning these higher aspect wings and provide an awesome surfing experience.

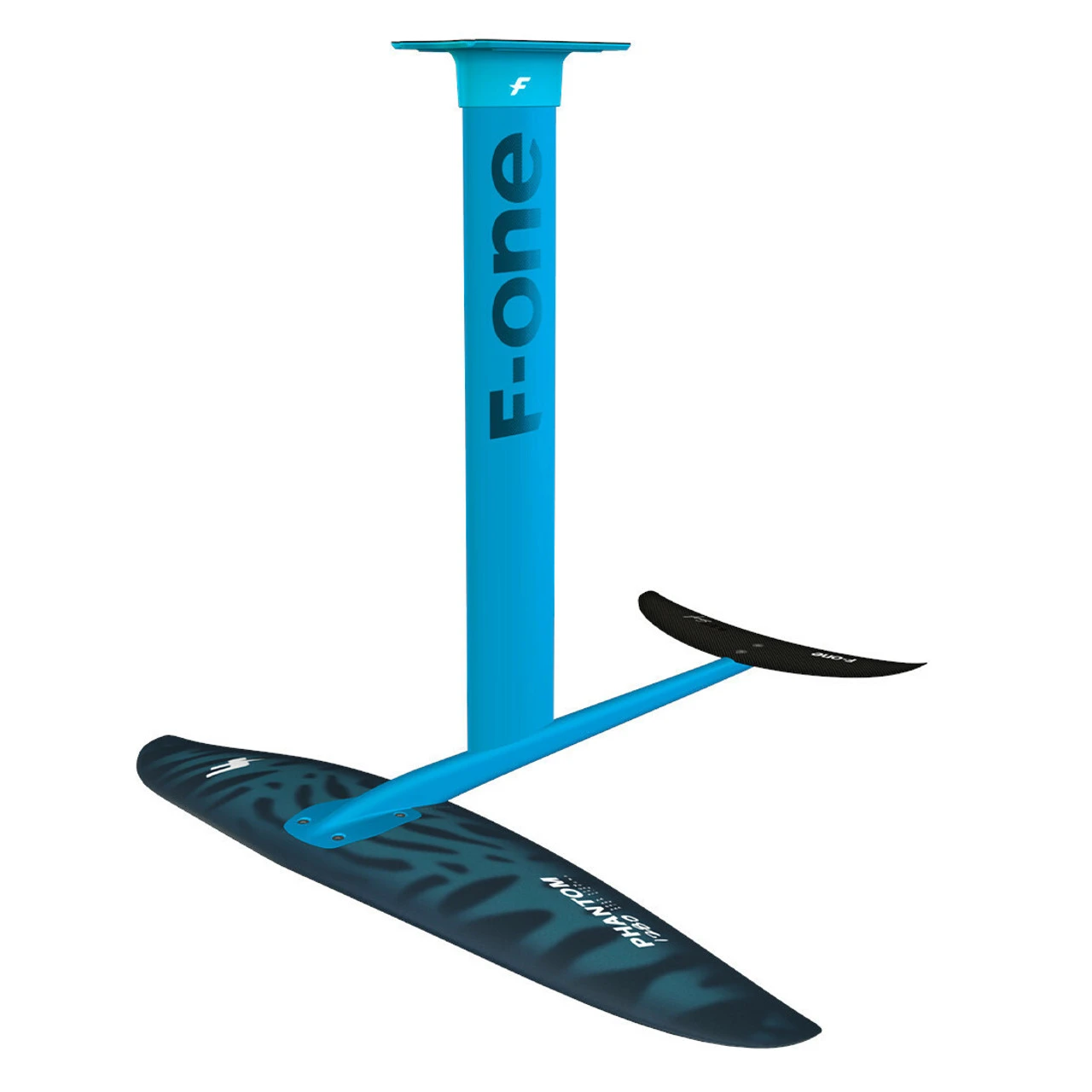

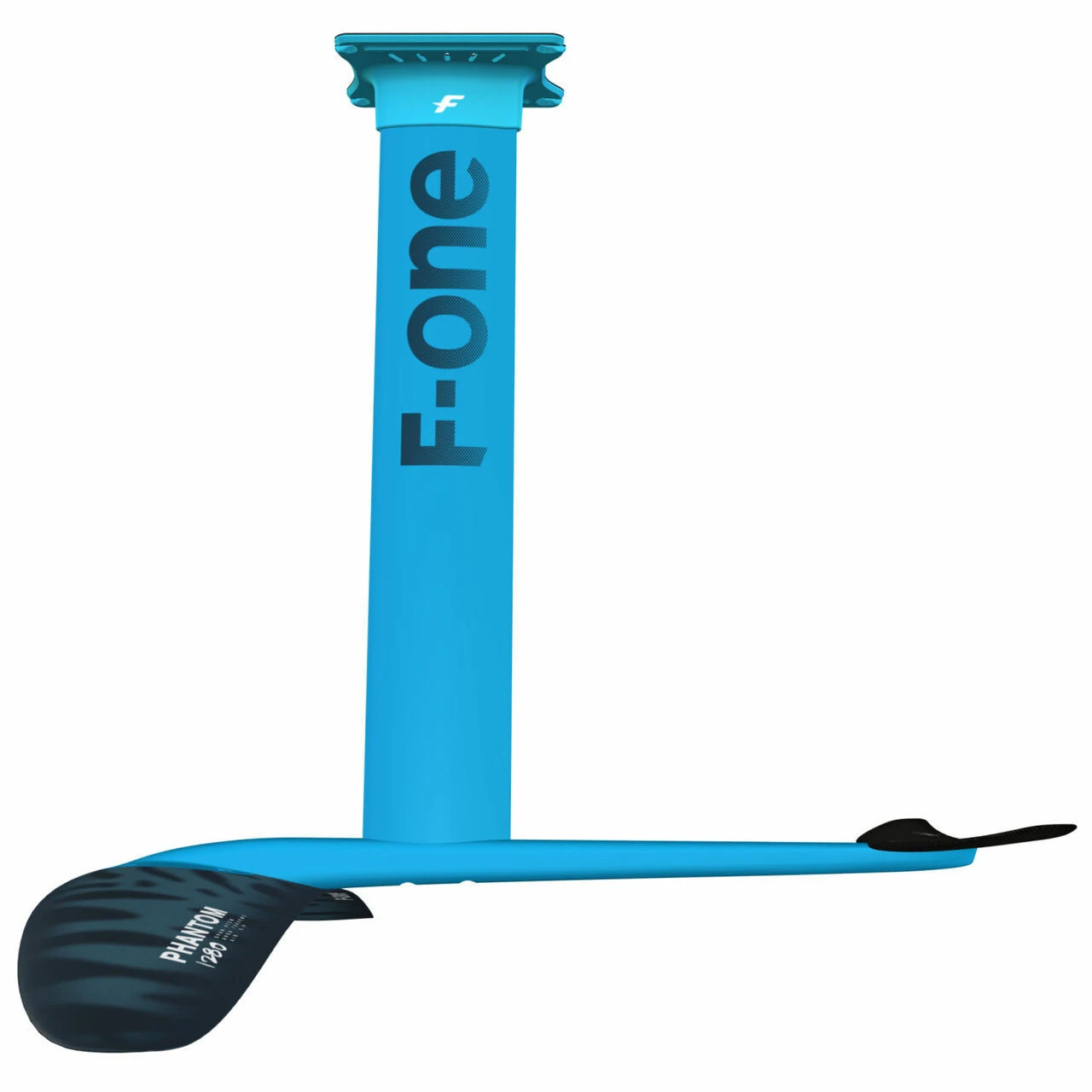

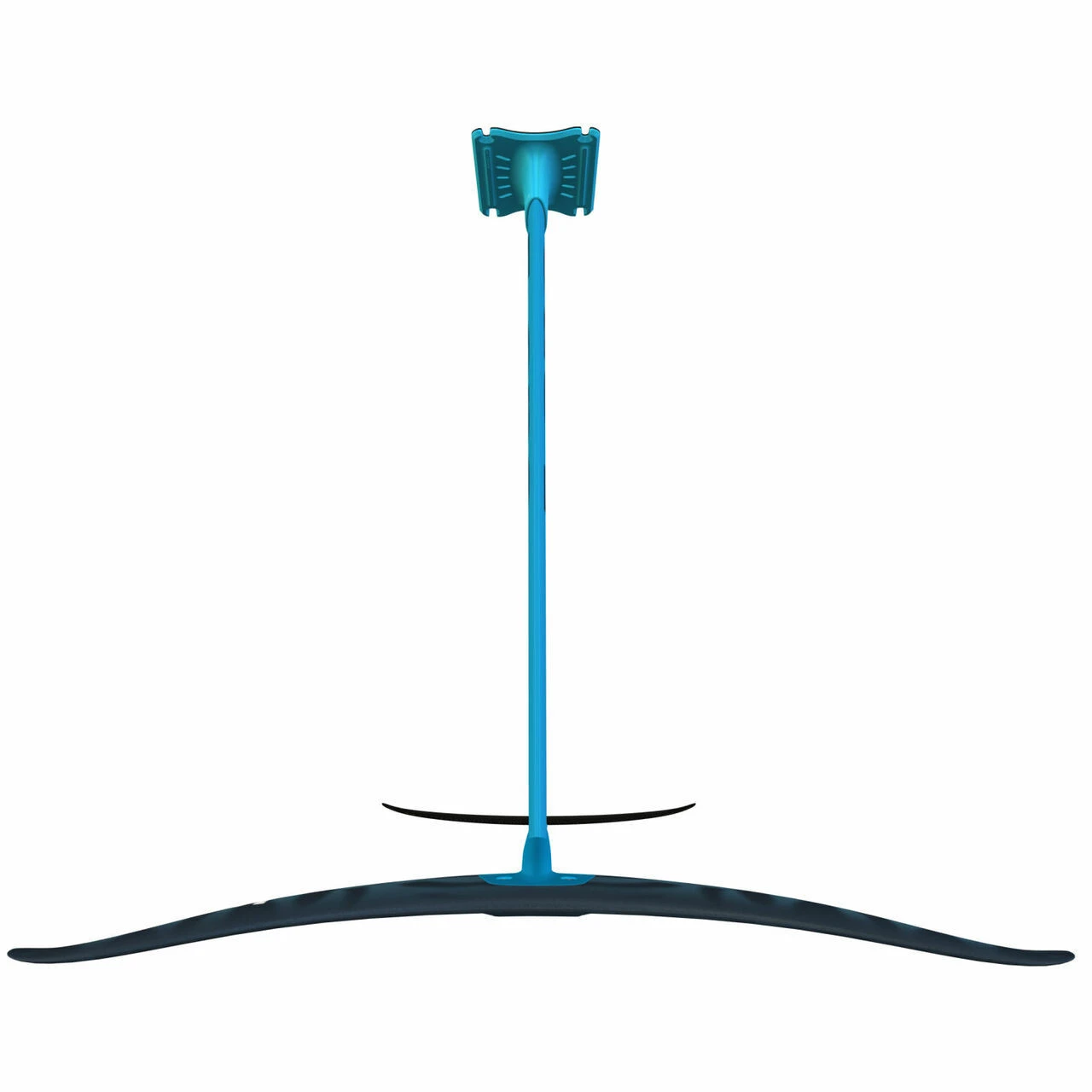

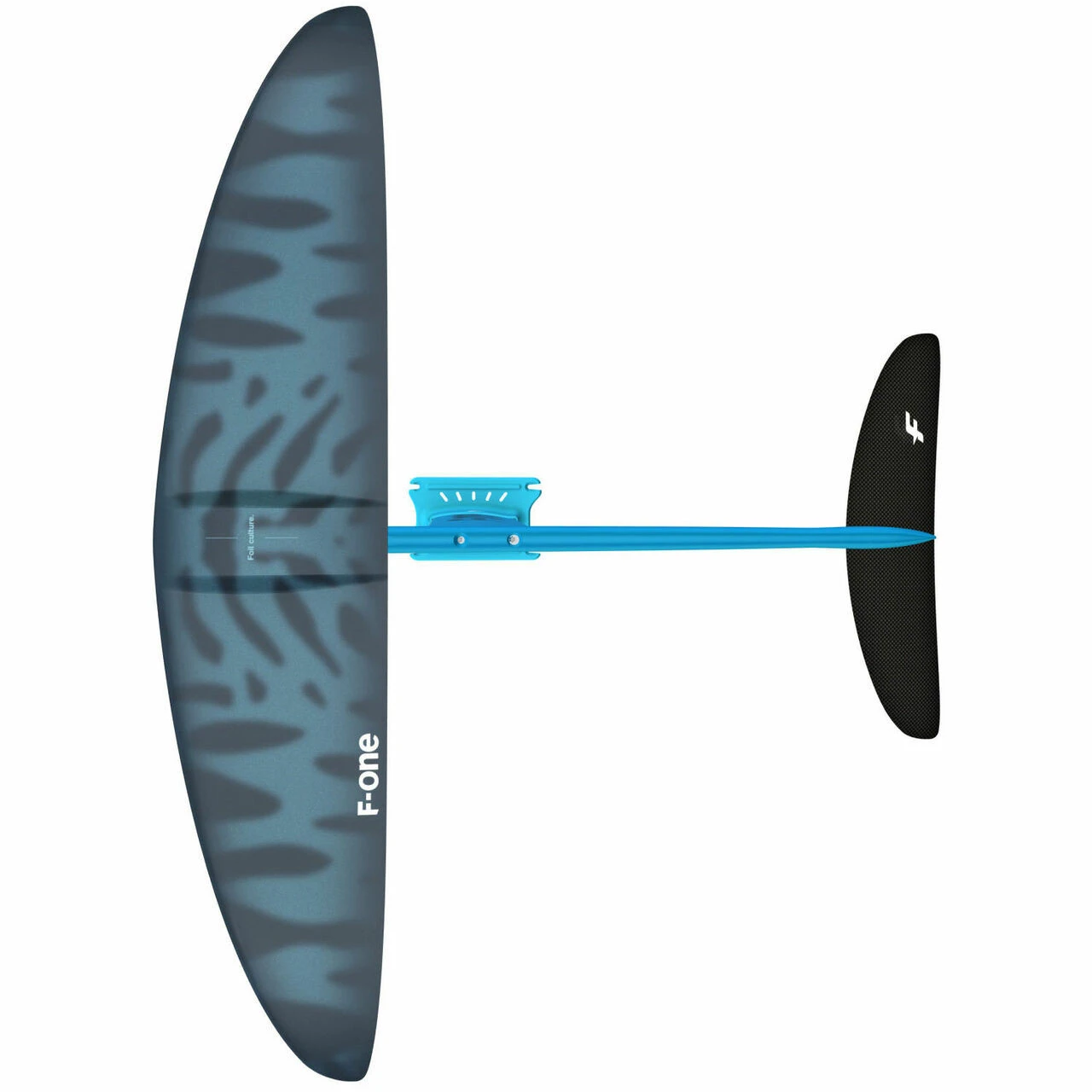

F-One Phantom 1280 FCT Foil Set

Includes: FW PHANTOM FCT 1280 + ALU FUSELAGE 67 SURF + STAB R275 SURF

Area: 1280 cm sq
Span: 87 cm
Aspect Ratio: 5.9
Alu Fuselage: 67 Surf or 74 Surf



F-one Phantom 1480 FCT Foil Set

Includes: FW PHANTOM FCT 1480 + ALU FUSELAGE 74 SURF + STAB R275 SURF

Area: 1480 cm sq
Span: 96 cm
Aspect Ratio: 6.2
Alu Fuselage: 74 Surf



Features

Foil Compression Technology
The Foil Compression Technology is a F-ONE innovation offering impressive mechanical properties making it particularly suited for foil subjected to high stresses and bending loads. F-ONE’s FCT front wings are built in fiberglass around a high density foam core. The wing is covered by a thin and strong shield skin. This technology offers one of the most accessible foil setup market whilst keeping the DNA of its carbon siblings.

Fusion Link

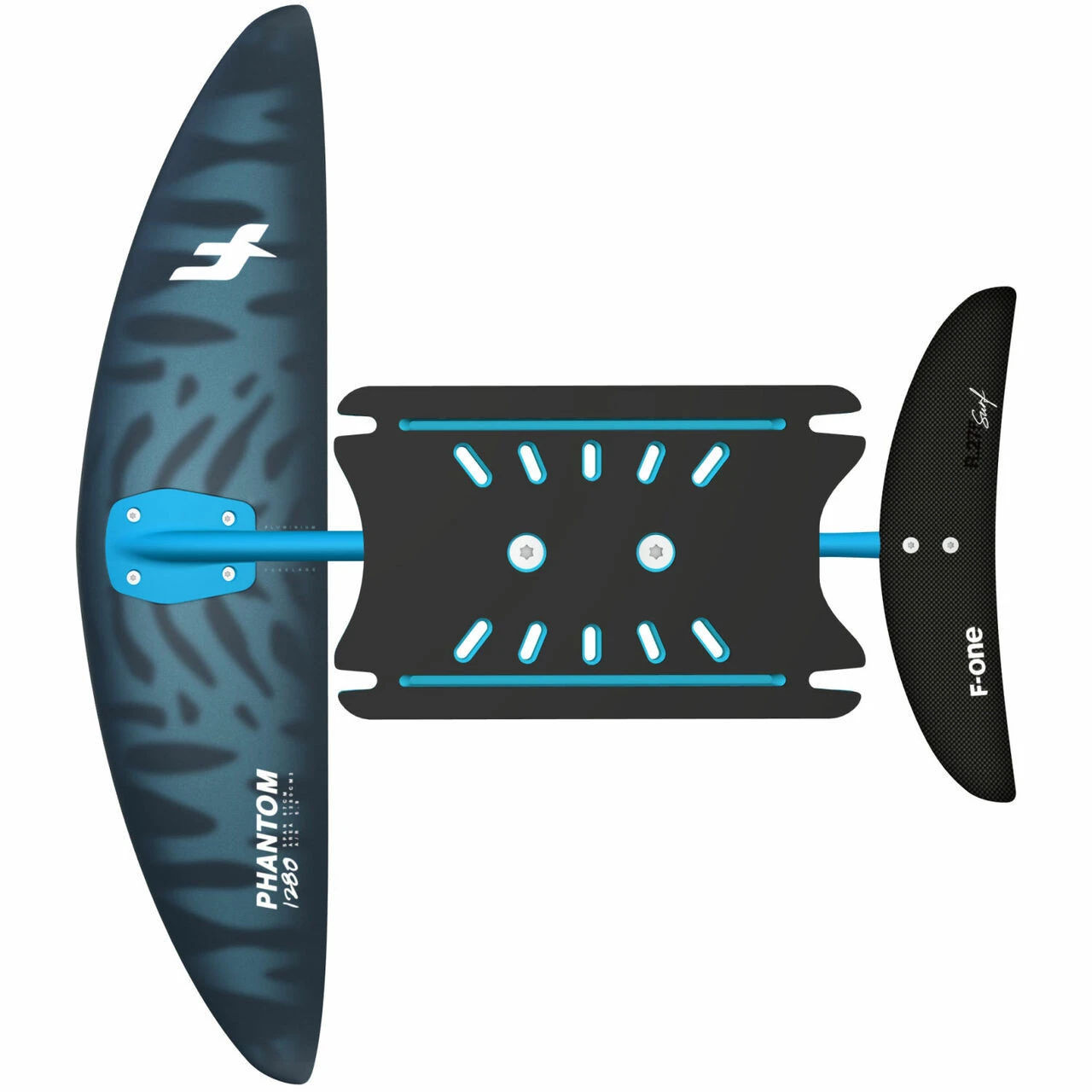

The Fusion Link enables the perfect connection between the Fuselage and the Front Wing using a large solid plate at the front of the fuselage. It is screwed to the front wing using 4 x M6 – 14 mm screws, resulting in a connection geometry that ensures a very solid and stiff assembly.

Aluminum 6063 and 606
This aluminum alloy boasts some very good mechanical properties and can be processed in many different ways while also offering a natural resistance to corrosion.

Alu Mast 45 > 95 cm
The F-ONE aluminum mast can be used for all disciplines, kite, surf, stand up paddle, wing foil and windsurf. The profile is extruded with precision from 6063 aluminum block.

Stab R275 SURF
The R275 SURF stab is specifically designed for carving and pumping. Its flatter arch shape delivers high efficiency while pumping in order to connect more waves. Its shape and smaller area ensure sharp turns and more speed with a very loose feeling, closer to that of a shortboard. It is a high-performance stab that suits the Phantom range. Built in RTM and designed to be securely mounted on F-ONE fuselages, its profile and angle of incidence were tuned to achieve a very intuitive balance.

Alu fuselage 67 and 74 SURF
Ideal stability
Robust and durable
