F-one Phantom Foil

Original price was: $325.00.Current price is: $95.99.

SKU: BWFJA 9944 Categories: Wing, Wing Foil - Foil Sets

100% Quality Promise
Quick responses, top-notch service.
Made of environmentally friendly materials
Secure Shopping Starts with Safe Payments

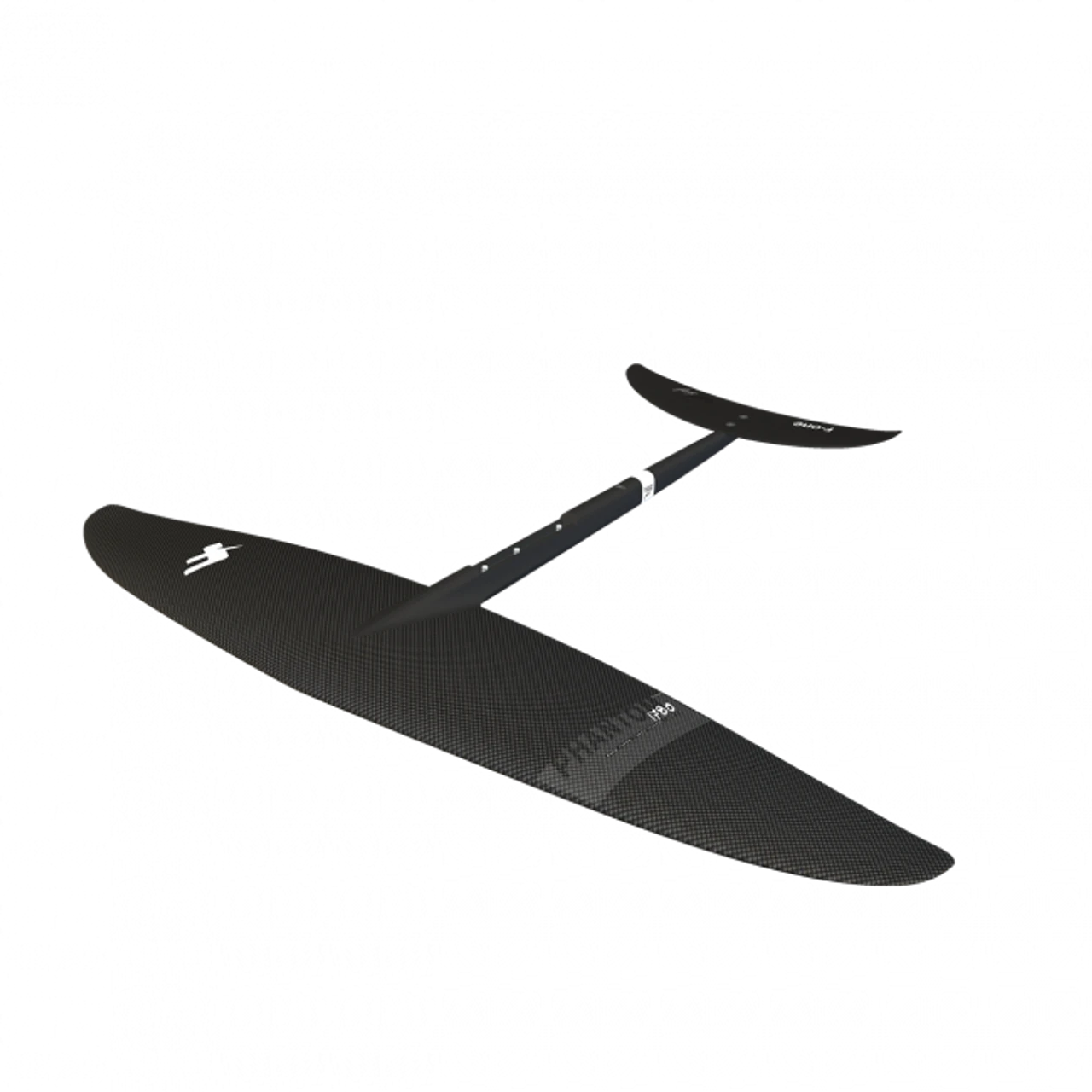

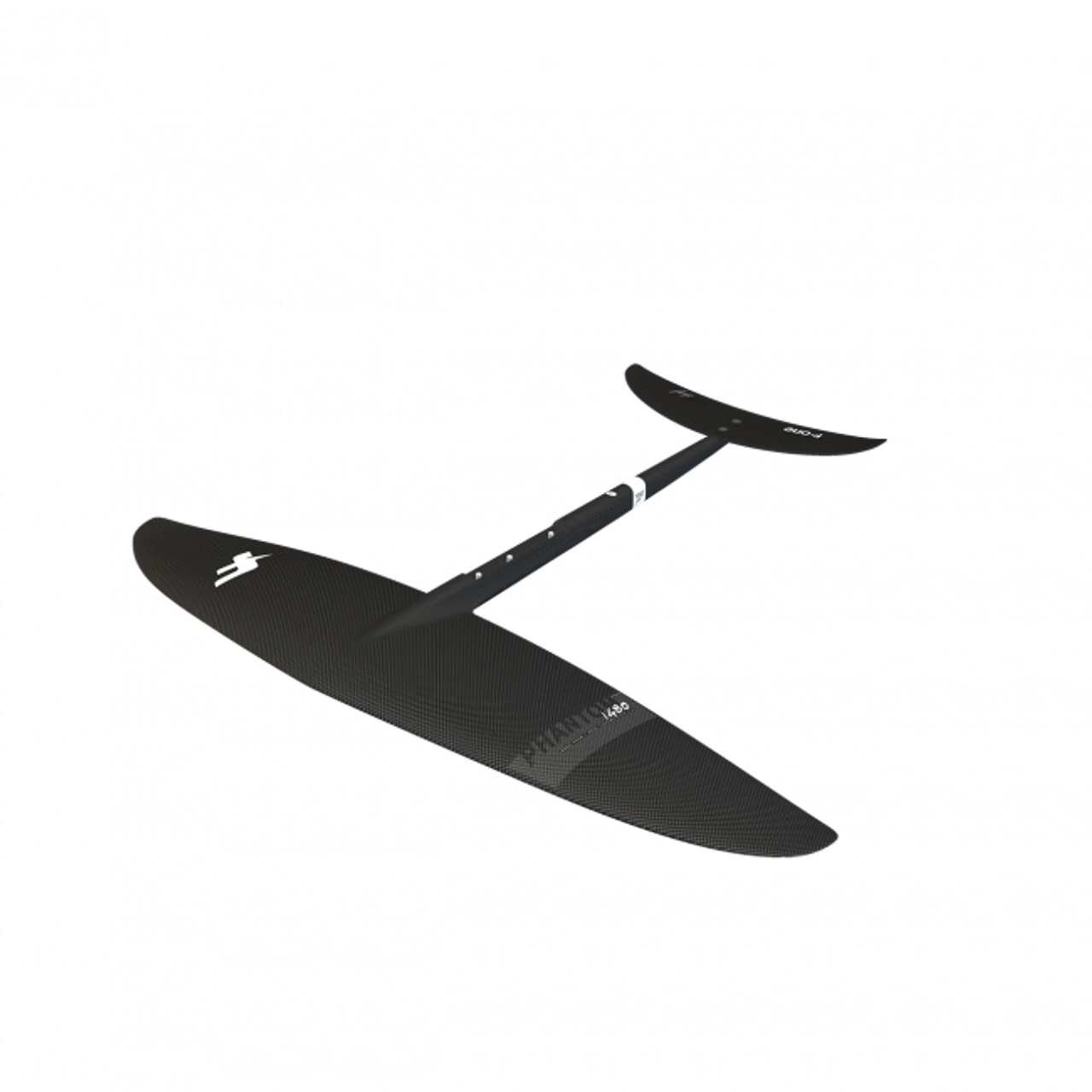

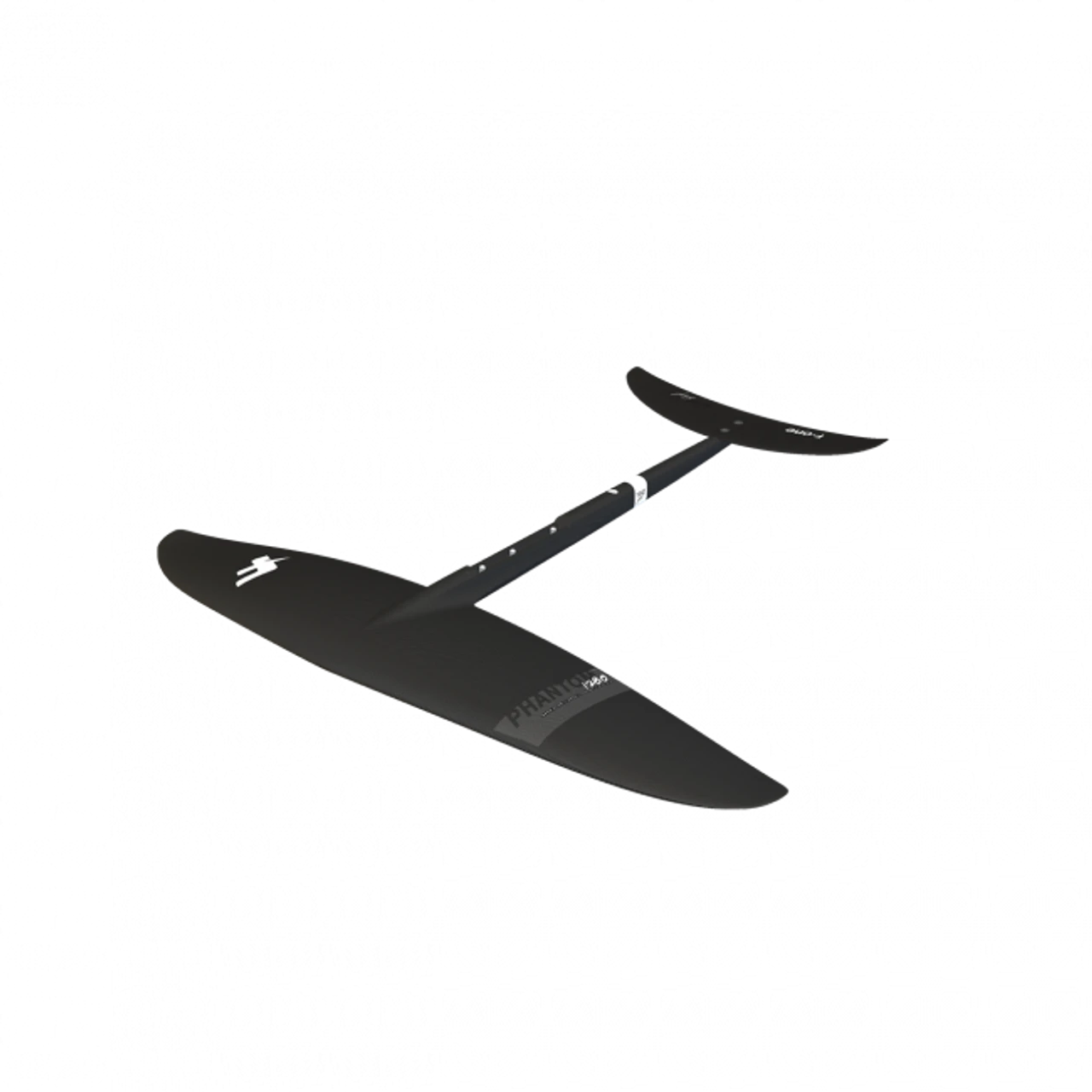

F-One Phantom Foil

The foils of the Phantom line are designed to glide effortlessly when pumping or connecting waves and then prove very agile and precise when surfing.

Speed and glide
Pumping/downwind machine
Nimble and maneuverable

Area: 840 cm²
Span: 740 cm
Aspect Ratio: 6.5
Fuselage Carbon: XX-Short

Area: 1280 cm²
Span: 870 cm
Aspect Ratio: 5.9
Weight: 1.37 kg (wing only)

Area: 1480 cm²
Span: 960 cm
Aspect Ratio: 6.2
Weight: 1.62 kg (wing only)

Area: 1780 cm²
Span: 1070 cm
Aspect Ratio: 6.4
Weight: 1.90 kg (wing only)

Using a refined design to achieve higher finesse, the Phantom foils glide faster and for longer. Connecting waves whether during surfing or downwinding thereby becomes much easier and more fun. Yet, connecting waves isn’t much fun if you can’t turn and this is why carving is also part of the DNA of the Phantom foils. By working on the lift distribution, arch shape and other details we achieved a high-aspect, performance foil that can carve smooth curves on the waves and swells.

Built using the Monobloc construction with pre-preg carbon, the foils are both very light and really strong. This set-up offers better load transmission and better stiffness throughout the different parts for maximum control. The Titan connection allows to plug both an aluminum or carbon mast and the fuselage is split in two parts to facilitate transportation.

The Phantom wings are recommended with the C275 Surf stab. This stabilizer offers better glide and a looser feel. It’s the ideal match for the speed and glide of the Phantom wings. The looser feel will help turning these higher aspect wings and provide an awesome surfing experience.

The C275 SURF stab is specifically designed for carving and pumping. Its flatter arch shape delivers high efficiency while pumping in order to connect more waves. Its shape and smaller area ensure sharp turns and more speed with a very loose feeling, closer to that of a shortboard. It is a high-performance stab that suits the Phantom range.

Built in Pre-Preg Carbon and designed to be securely mounted on F-ONE fuselages, its profile and angle of incidence were tuned to achieve a very intuitive balance.

Efficient pumping
Sharp turns
Loose-feeling

TITAN CONNECTION

The TITAN connection enables a very stiff and direct connection between two parts, locking efficiently any movement in all directions.
PRE-PREG

With Pre-preg fabrics, the carbon fiber is directly impregnated with epoxy resin by its manufacturer; this guarantees a perfect ratio between epoxy and carbon, and represents the highest quality process. The material is stored in cooled rooms and catalyzes at 120° C in a mold.
MONOBLOC WINGS

Having a stiff and solid assembly between all the parts of the foil, is key to making it perform at its best as well as easy to handle.

Alu Masts

The F-ONE aluminum mast can be used for all disciplines, kite, surf, stand up paddle and windsurf. The profile is extruded with precision from 6063 aluminum block. The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down. It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular. The aluminum mast can be used on every foil of the range and it is very easy to jump from one length to another. A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).
