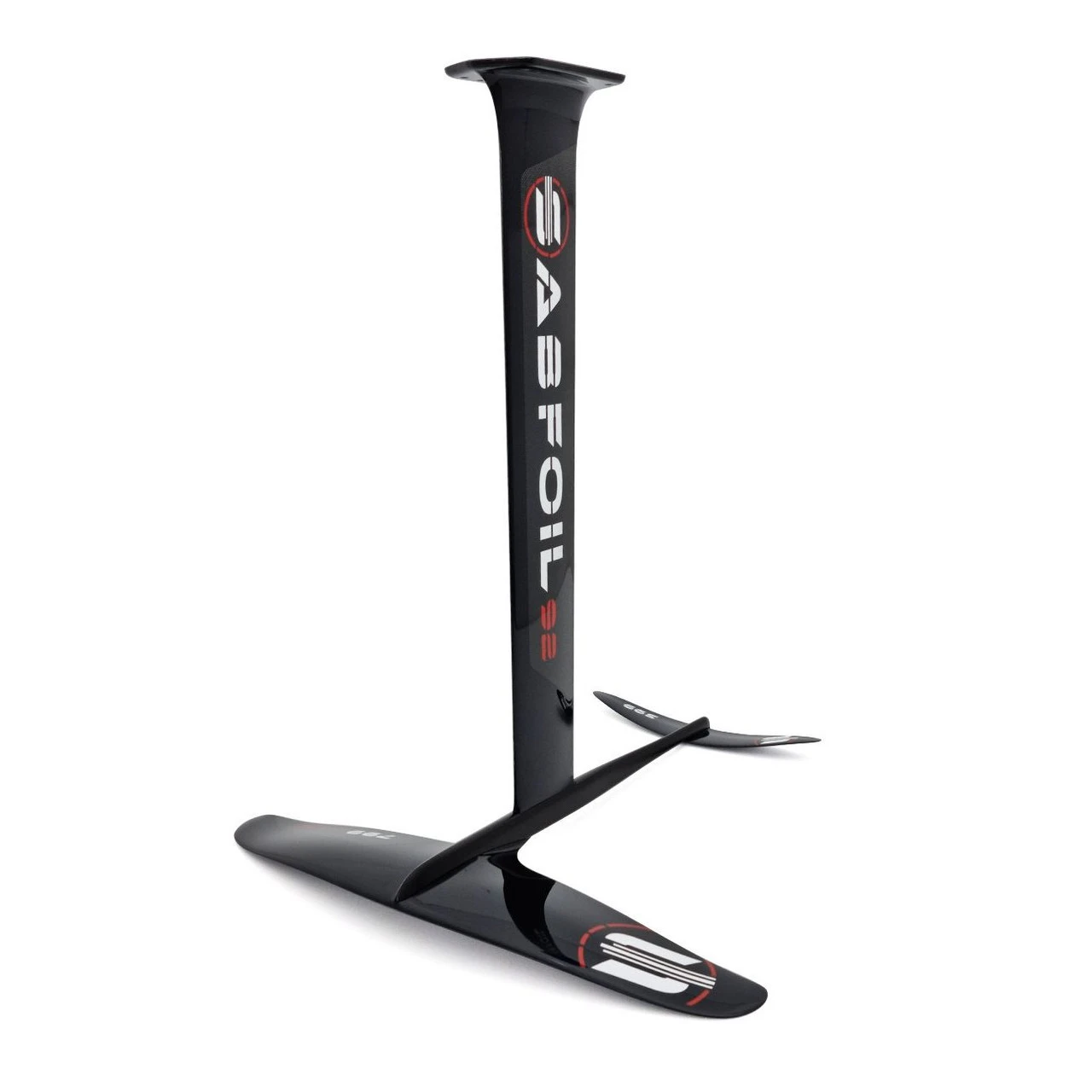

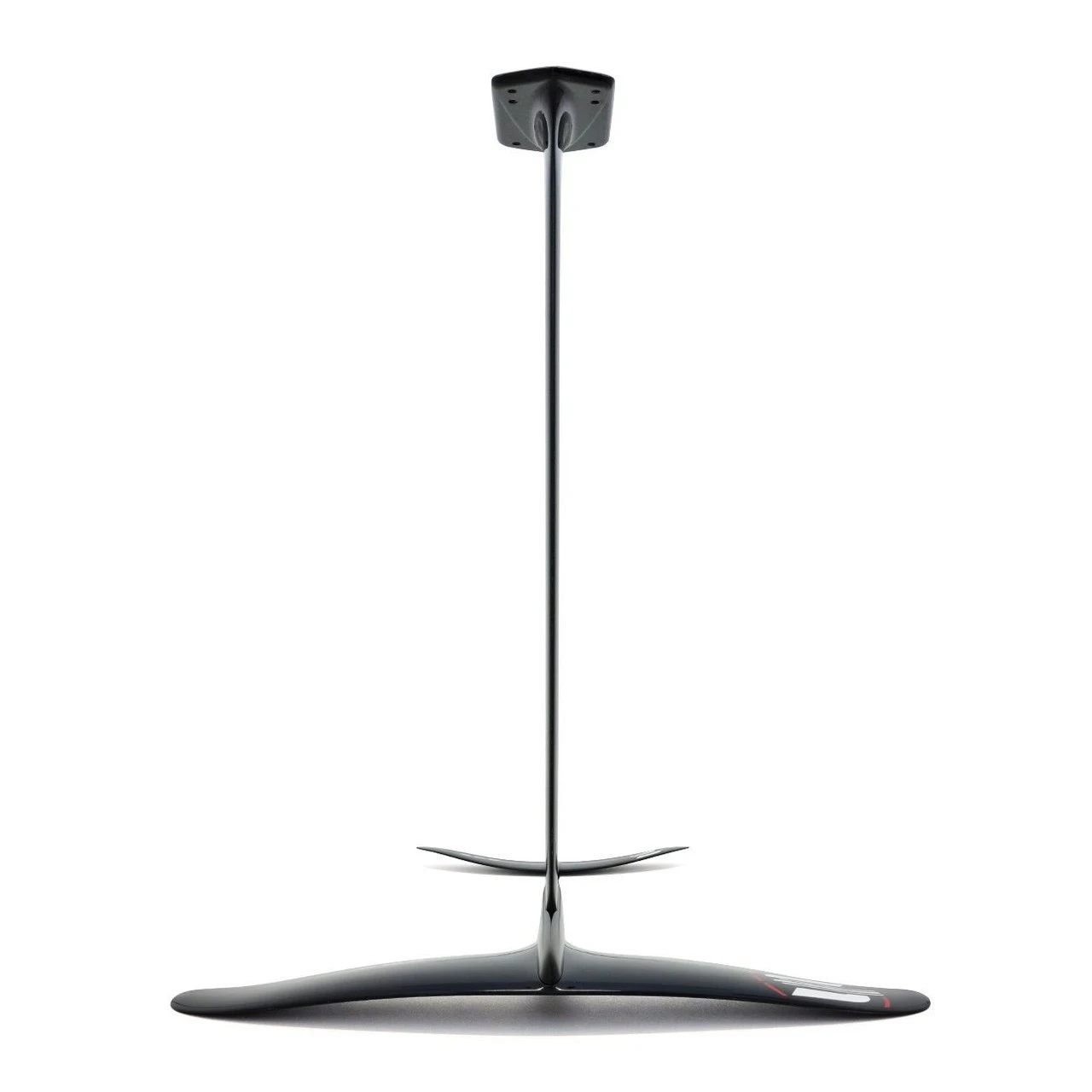

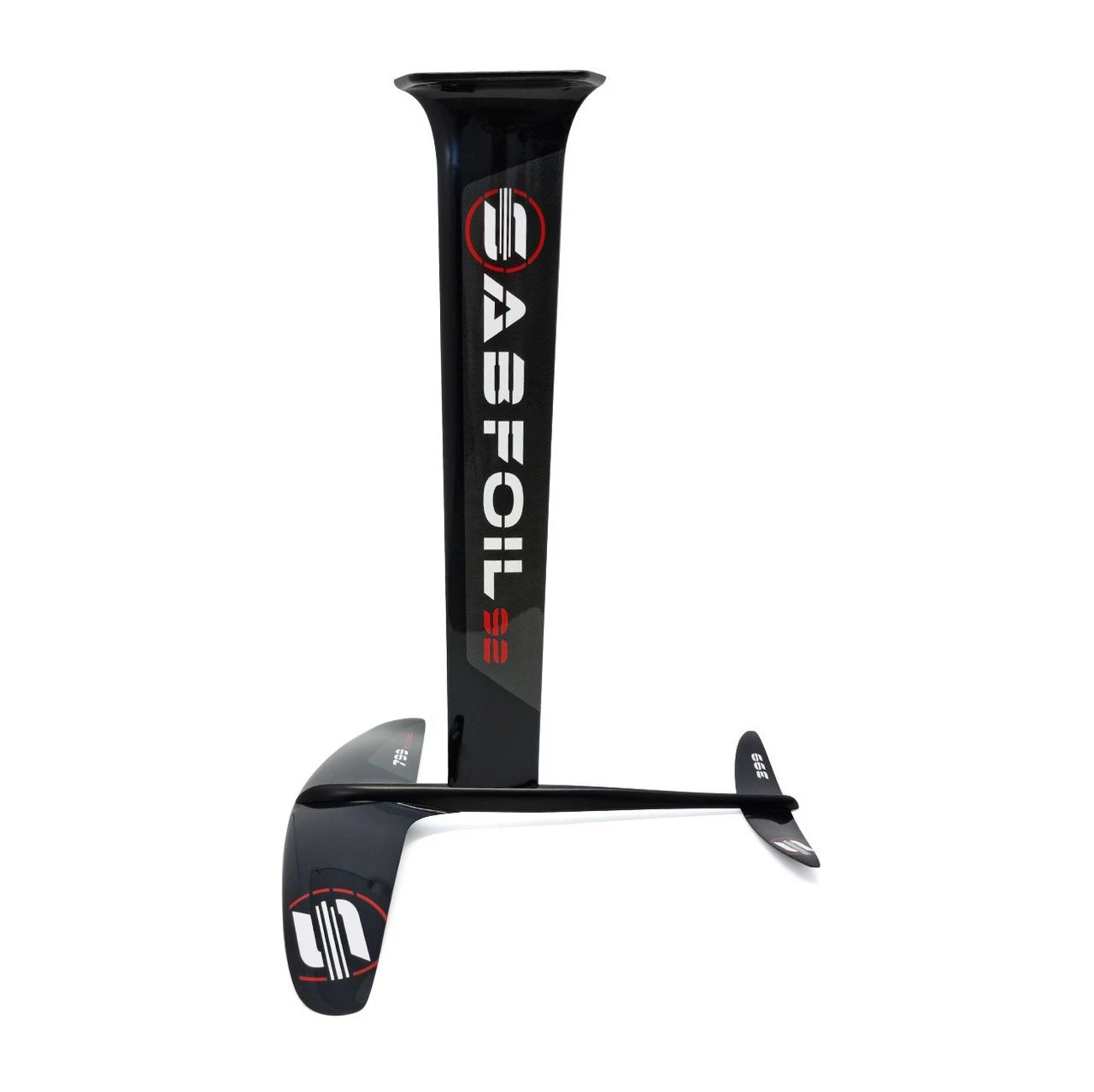

SABFOIL M92 W799BP/S399 Foil Set

SABFOIL M92 W799BP/S399 Foil Set

KIT M92 – W799BP – S399 – F700HS

What’s Included:

• M92 – Mast 92 CARBON – PLATE KITE/SURF
• W799-BP – Front wing 799 Balz Muller LTD Wing – 1100 CM2
• S399 – Stabilizer 399mm Kite/Wind/Surf
• F700-HS – Fuselage 700-HS
• MH107 – 2x Flat Head Screws Torx M6x16
• MH134 – 2x M8x30 and 1 x M8x35 Flat Head Screws Hex
• MH111 – 2 x Socket Head Cap Screws M6x30 and Washers
• Torx, hex tip, grease
• Instructions

What SABFOIL has to say about the M92 W799BP/S399 Foil Set

Balz’s word: “My new pro model is created for an early lift with the smallest possible front wing surface without losing control at higher speed. The direct feeling is pure pleasure whether you want to make radical turns or crazy jumps. When I carve half the wing out the water the stiff mast and thin wingtips avoid turbulences and let me continue my flight. With the small surface, the landings are smooth and the optimized profile lifts me straight up again. Together with the stunning wide speed range, the W799 is my choice for winging (M92-F700HS-S399) and windfoiling (M92-F900-S399)”.

Specifications

Mast Height	920 mm
Front Wing Span	800 mm
Front Wing Root Chord	170 mm
Front Wing Aspect Ratio	5.8
Front Wing Surface	1100 cm2
Stabilizer Span	400 mm
Stabilizer Root Chord	64 mm
Stabilizer Aspect Ratio	7.73
Stabilizer Surface	207cm2
Fuselage Length	700 mm
Kit Weight	4331 g [±5%]
